Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire,Aluminum,Stainless Steel/Aluminum | Type: | Expanded Mesh |
|---|---|---|---|
| Product Name: | Expanded Metal Mesh | Surface Treatment: | Power Coated,anodizing Etc |
| Hole Shape: | Customized | Feature: | Corrosion Resistance,Beautiful |
| Thickness: | 1.0-3.0mm | Application: | Decorative |
| High Light: | metal diamond mesh,expanded metal panels |
||
beautiful and safety specialized in customized aluminum expanded mesh ceiling

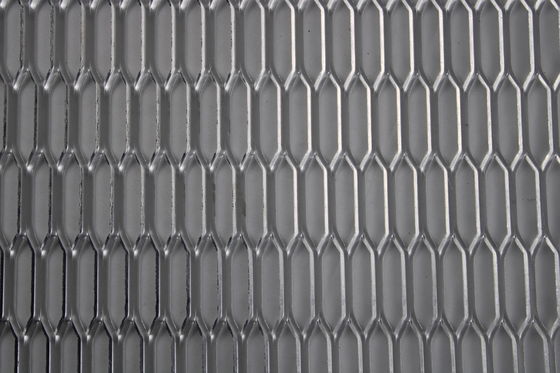

Expanded metal is a versatile and economical product. Made from a sheet of metal uniformly slit and stretched, forming diamond-shaped openings in the sheet.
The strands and bonds of expanded metal add strength and rigidity. Expanded Metal comes in a standard (raised) or flattened diamond pattern in a variety of gauges, opening sizes, materials and sheet sizes.
Specification
| Material |
Aluminum,Stainless Steel, Low Carbon Aluminum,Low caron steel, Galvanized steel,stainless steel,Copper, titanium etc |
| LWD | MAX 300mm |
| SWD | MAX 120mm |
| Stem | 0.5mm-8mm |
| Sheet width | MAX 3.4m |
| Thickness | 0.5mm – 14mm |
|
Surface treatment |
- Without treatment is ok - Anodized (colour can be customized) - Powder coated - PVDF - Spray painted - Galvanized : Electric galvanized, Hot-dipped galvanized |
|
Classification |
- Small expanded wire mesh - Medium expanded wire mesh - Heavy expanded wire mesh - Diamond expanded wire mesh - Hexagonal expanded wire mesh - Special expanded |
|
Use |
Expended metal mesh can be widely used in including theprotection of machinery equipment, handicraft manufacturing, shelves, heavy machinery, work platforms, walkways,ships as well as other areas. |
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 2.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 2.5 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 2.5 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 2.5 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 2.5 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2.5 | 4 | 2.21 |
| 1.5 | 23 | 60 | 2.6 | 2.5 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2.5 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2.5 | 4 | 3.69 |
| 6 | 50 | 100 | 6 | 2.5 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2.5 | 2.1 | 28.26 |
usage
Aluminum pull net ceiling is a small ceiling system tailored to the customer's philosophy and requirements by using aluminum pull net as the raw material. Its surface is elegant and elegant, attracting sound insulation, more efficient, more environmentally friendly, and meets the needs of the future market. It is the new favorite of interior decoration.
