|Item Name:||Expanded Aluminum Mesh||Hole Shape:||Customized|
|Factory:||Huijin Wire Mesh Co., Ltd||Certificate:||ISO9001:2008|
|Advantage:||Elegant,Sound Proof,Efficient,Environmental||Project:||UIC Singapore, Russian Federation Building And So On|
|Surface Treatment:||Fluorocarbon||Material:||Aluminum 5052|
aluminium expanded mesh,
aluminium mesh sheet

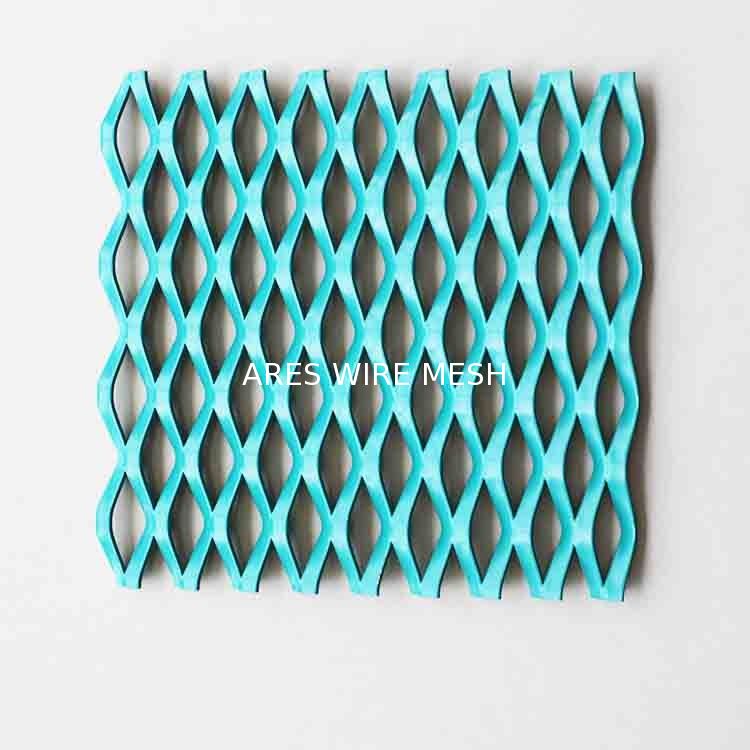

A5052 Fluorocarbon Expanded Aluminum Mesh For Building Cladding Facade
General Production Information
Facade cladding is extremely important both for functional and for aesthetical reasons. Vertical external cladding is a filter, a physical bordering, it’s a way the building mingles with the environment and it influences the perception we get from the building. Depending on the geographic area, the use, the climate, the design and the budget we can choose from several types of façade cladding. Metal panels, holed and ashlared sheets and metal mesh to make complete facades.
As one of the important facade technical elements in high-rise buildings, expanded aluminum mesh cladding is widely used because of its simple structure, soundproofing, fireproof and easy instrallation. Ares metal is a professional steel mesh manufacturer with 33 years of OEM history. Mainly provide the panel part for the Facade cladding. The panel of the aluminum mesh cladding is mainly welding composed of steel mesh and frame.
Ares metal can provide surface treatments such as painting, anodizing and fluorocarbon coating. Our expanded aluminum is produced from aluminum sheet or coil that is simultaneously slit.
Material: Aluminum 5052
5052 aluminum plate is mainly used for the requirements of high plasticity and good weldability, such as transport vehicles, ship sheet metal parts, instrumentation, street lamp brackets and rivets, hardware products, electrical enclosures. As a typical rust-proof aluminum plate, it is also often used in ship operating tables.
5052 advantages of marine aluminum:
Surface Treatment: Fluorocarbon
Fluorocarbon powder coating is a poly-vinylidene fluoride resin nCH2CF2 baking(CH2CF2)n(PVDF) as the base material or with metallic aluminum powder coating made for the toner. Bond of fluorine/carbonized the fluorocarbon base material in the chemical structure in conjunction with such a structure of the nature of having a short key is combined with hydrogen ions most stability and solidity of the chemical structure different physical properties of the fluorocarbon paint in general coatings.
The advantages of fluorocarbon powder paint:
Addition to abrasion resistance in mechanical properties, impact resistance, has excellent performance, particularly in adverse weather conditions and the enviroment, showing a lasting anti-fade resistance, UV resistance properties. Early 1960s for engineering plastics, for wires and cables, 1965 Pennwalt Chemical Company first polyvinylidene fluoride (PVDF) as the synthetic construction of the base material and metal particles, aluminum powder finishes, also known as metallic paint, and as trademarks to Kynar500. Thus the world manufacturers has started using Kynar500 create a fluorocarbon coating finishes, to meet the high-end architectural interior and exterior aluminum coating, a wide range of color choices, beautiful and dignified appearance, and durability for many of the world grand adding luster to the curtain wall construction. Paint manufacturers guarantee on the service life of the coating for 10 years, 15 years of development to guarantee 20 years.
|Thickness||Strand Width||Hole Size|
|2.0 mm||5.0 mm||25 × 50 mm|
|2.5 mm||5.0 mm||30 × 60 mm|
|3.0 mm||5.0 - 10.0 mm||40 × 80 mm|
|2.0 - 3.0 mm||5.0 - 15.0 mm||50 × 100 mm|
|3.0 mm||20.0 - 30.0 mm||90 × 200 mm|
|3.0 mm||20.0 - 30.0 mm||100 × 250 mm|
