2D 358 Security Fencing with 4 mm double horizontal wire and 6 mm vertical wire for greater strength.

2D 358 fence panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centres on the inside face. So it has double horizontal wires at 152.4 mm centres. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high security areas.

358 mesh fence Features:

• Small mesh opening offers no footholds for climbing.
• Panel wires are firmly welded at every intersection and provide a solid and robust structure.
• Solid welding joints, small mesh opening, together with thick wire diameter make the mesh is hard to be cut by hand or powered tools.
• Galvanized and powder coating treatments offers excellent rust, corrosion and weather resistance performances.

2D security fencing Specifications:

• Mesh opening: 76.2 mm × 12.7 mm welded at each intersection.
• Horizontal wires: 4 mm diameter at 12.7 mm centres on the attack face, and intermittent 4 mm double wires at 152.4 mm centres on the inside face.
• Vertical wires: 6 mm diameter at 76.2 mm centres.

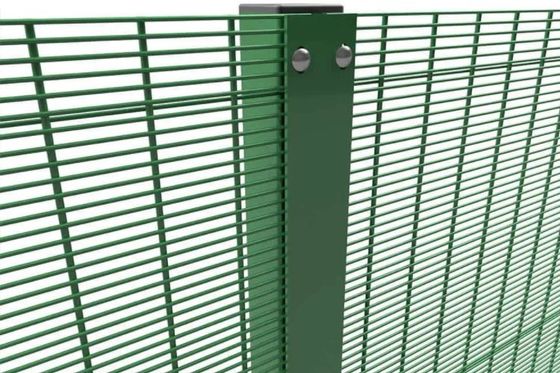

• The post has a single row of M8 threaded inserts which allow the panels to be but fitted with specialised pressed steel brackets and are pitched at 2.55 m centres.
• Panel width, height, finish, fence post and clamps is the same to 358 mesh fence, please see table-1.
