Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection

Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection
Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection

Large Image :  Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection

Product Details:
Place of Origin: China
Brand Name: Citti Mesh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packing in cartons or wooden cases
Delivery Time: a week
Payment Terms: L/C, T/T
Supply Ability: large supply
Contact Now

Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection

Description
Material: Pvc Coated Wire Wire Diameter: 2.0-5.0mm
Hole Size: 60*80,80*100,100*120 Etc Hole Shape: Hexagonal
Size: Can Be Customized Name: Hexagonal Gabion Mesh
High Light:

river scour protection hexagonal gabion

,

2.0mm hexagonal gabion mesh

,

dams scour protection hexagonal gabion mesh



Double Twisted Hexagonal Mesh Gabions are widely used in river and dams scour protection.

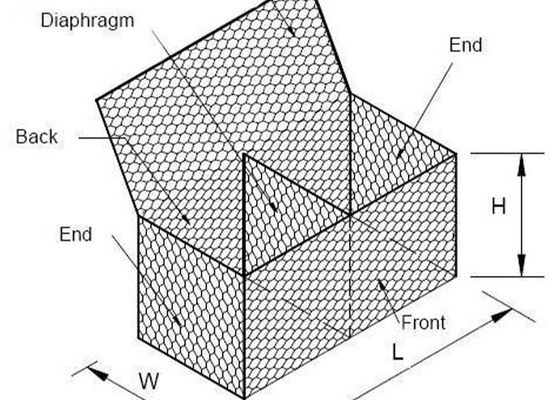

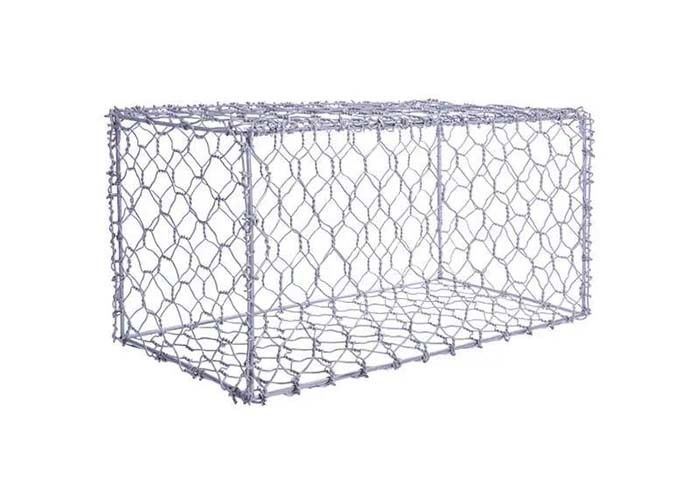

Double Twisted Hexagonal Mesh Gabions are rectangular wire mesh baskets filled with rock at the project site to form malleable, permeable,monolithic structures such as retaining walls and structures for various types of civil projects.

The double twisted woven wire will not unravel, even when cut the durability of gabions comes from their wire type and coating—whether it is the heavy galvanized mild steel wire or the same wire with an additional PVC coating for ultimate rust control.



Double Twisted Hexagonal Mesh Gabions Specifications:



Wire diameter/mm Mesh size /mm Size/m No. of diaphragms Deviation
2.0-5.0

60*80

80*100

90*110

100*120

120*150

 1*1*0.3 0 ± 5%
1*1*0.5 0
1*1*1 0
2*1*0.3 1
2*1*0.5 1
2*1*1 1
3*1*0.3 2
3*1*0.5 2
3*1*1 2
4*1*0.3 3
4*1*0.5 3
4*1*1 3
2*0.5*0.5 1
3*0.5*0.5 2
Customized according to buyer's requirement.


Applications:

  • Retaining WaIl Structures
  • Highways & Bridges
  • Erosion Control
  • River & Canal Training
  • Coastal & River Embankment Works


Advantages:

  • Ease of handling and transportation
  • Speed of construction & Quicker Assembly
  • Flexibility & Endurance
  • Permeability to water - gabion structures offer free drainage providing higher bank stability when used for river bank protection.
  • Environment Friendly as gabions structures blends easily and harmoniously with the natural surroundings over the time.



Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection 0



For retaining walls



Double Twisted 2.0mm Hexagonal Gabion Mesh In River And Dams Scour Protection 1



For bank protection
