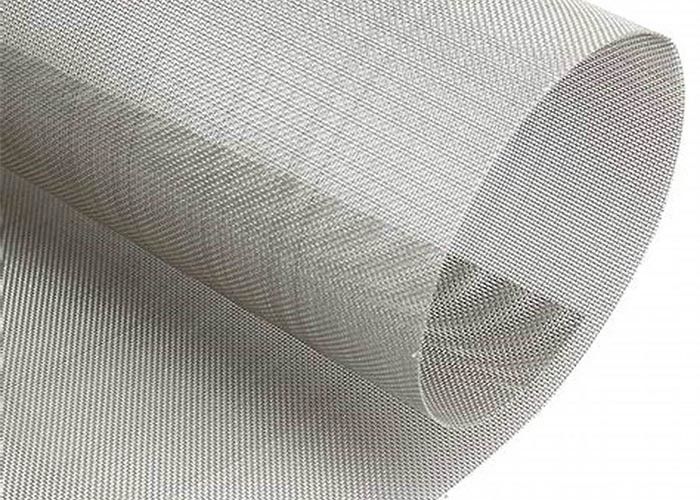

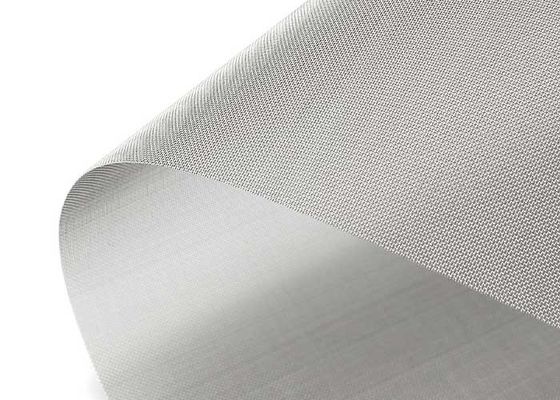

TA5 TA7 TC1 Titanium Woven Wire Mesh High Corrosion Resistance

Titanium Woven Wire Mesh - Extremely high corrosion resistance, hardly affected by natural corrosion.

Titanium woven wire mesh is woven from pure titanium wire or titanium alloy. The titanium wire mesh is also called titanium mesh, titanium filter mesh, titanium electrode mesh and titanium current collecting mesh according to the application.

Titanium mesh can be divided into black and bright according to the surface of the raw material.

• Black Titanium mesh is made of pure titanium wire with graphite coating on the surface. Moreover, it is suitable for ship filtration and manufacturing of seawater filter titanium mesh.

• Bright Titanium woven mesh is produced by weaving pure graphite wire after removing the graphite emulsion coating. It is suitable for manufacturing an electrode mesh, a titanium battery collecting mesh, and a fine chemical liquid filtering titanium mesh.

Titanium mesh is a kind of non-ferrous metal mesh with special properties. It has low density, but highest strength than any other metal mesh; And also high purity titanium mesh will generate an oxide film with dense adhesion and high inertia in the corrosion-resistant media environment, especially in seawater, wet chlorine gas, chlorite, and hypochlorite solution, nitric acid, chromic acid metal chloride, and organic salt are not corroded. Besides these, titanium wire mesh is also featured with good temperature stability & conductivity, non-magnetic, non-toxic.

Titanium mesh is mainly used for sieving and filtering under acid and alkali environmental conditions or for gas, liquid filtering and other media separation. There are three methods: plain weave, twill weave, and dense weave. Due to the difficulty of drawing titanium wire, the thinnest domestic titanium wire can be drawn at 0.05mm, the elongation of titanium wire is low, the strength is large, the elasticity is large, and the flexibility is low. This greatly limits the production of high mesh titanium mesh. The specification of titanium mesh is 1 mesh-400 mesh.

Titanium woven mesh material

• The material of the titanium woven mesh can be mainly provided: Pure titanium material: TA1, TA2.
• Titanium alloy: TA5, TA7, TC1, TC2, TC3, TC4.

Features of titanium mesh​

• Strong resistance to acid and alkali.
• Good anti-damping performance.
• High tensile yield strength.
• Low elasticity modulus.
• Non-magnetic, non-toxic.
• Good temperature stability and conductivity.

Applications of titanium mesh​

 Used in aerospace, petroleum, chemical.
