Expanded metal railings, expanded metal handrails, expanded metal infill panels, expanded metal balcony rail, expanded metal balustrade, expanded metal stair railing.

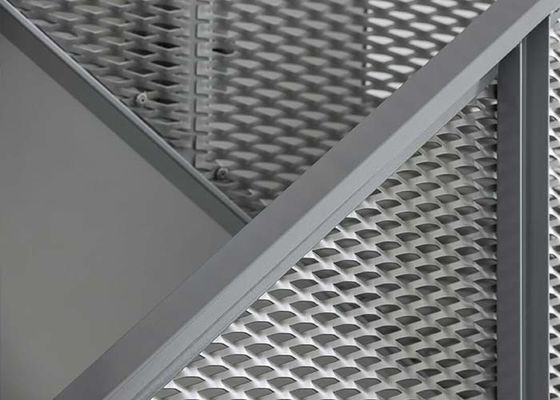

Expanded Metal Balustrade and Railing Infill Panels Safety, Robust And Durable

Expanded metal railing is also called expanded metal handrails or expanded metal balustrade, it is robust and durable and are commonly used as bridge, terrace, balcony, stair or balcony rails. It can not only play the role of security protection, but also can perfect fit for different architecture styles as it comes in a variety of hole patterns, colors and sizes.

Expanded metal panels are made from a single piece of metal through slitting and stretching process. Finished products without any welding or waste of materials and offer a clear and bright visual effect. Based on the above characteristics, expanded metal panels are ideally used as the infill panels for balustrade & railing. Our expanded metal products are provided with powder coated or anodized finishes to offer excellent corrosion resistance and ensure it enjoy a long lifespan no matter in indoor or outdoor applications.

Expanded Metal Railings Feature

• Good ventilation, allow flow of air & light.
• High strength and rigidity for security.
• Anti-corrosion surface treatment for durability.
• Various patterns, finishes & innovative colors.
• All-purpose for both indoor and outdoor applications.
• Easy to install and maintenance free.

Expanded Metal Railings Specification

• Material: aluminum, stainless steel, carbon steel.
• Thickness: 1.5 mm – 3 mm.
• LWD: 12.5 – 200 mm.
• SWD: 5-80 mm.
• Panel size: 1000 mm × 2000 mm, 1250 mm × 2500 mm (standard size), other sizes are available upon request.
• Finish: galvanized, PVDF coated, anodized, etc.
• Package: Packed by waterproof cloth or wooden cases.

Expanded Metal Railings​​ Application


It is commonly used as bridge, terrace, balcony, stair or balcony rails.

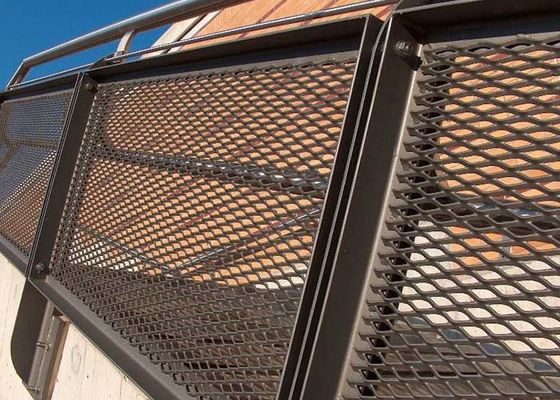

Blue Expanded metal railing installed on the side of the bridge

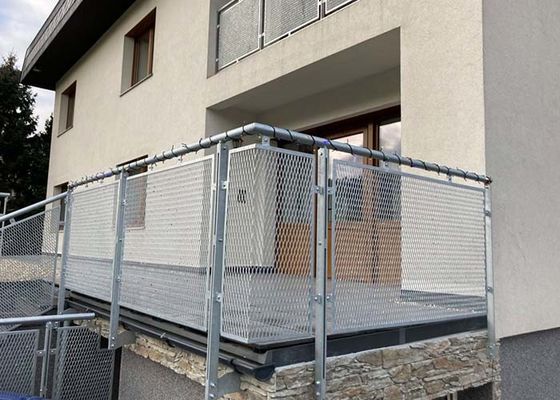

Expanded metal mesh railing installed around the terrace

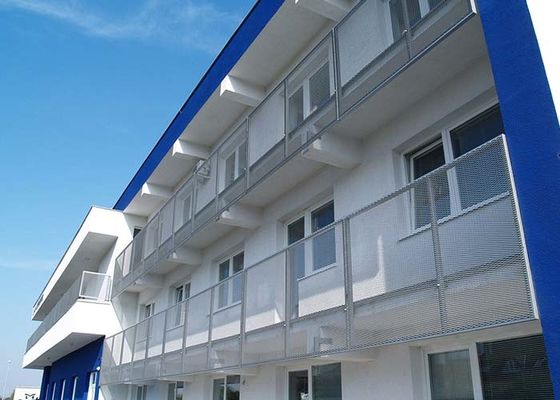

White PVC coating expanded metal railing installed on the side of the bridge

Expanded metal mesh railing for park balustrade

Expanded metal mesh for shelf railing

Expanded metal mesh railing installed around the terrace
