Filtration 0.5mm Woven Wire Cloth Stainless Steel Reverse Dutch Weave Wire Mesh

Stainless steel reverse dutch woven wire mesh used for water, oil and other liquid precision pressure filter.

Stainless Steel Reverse Dutch Weave Wire Mesh for High Pressure Filtration

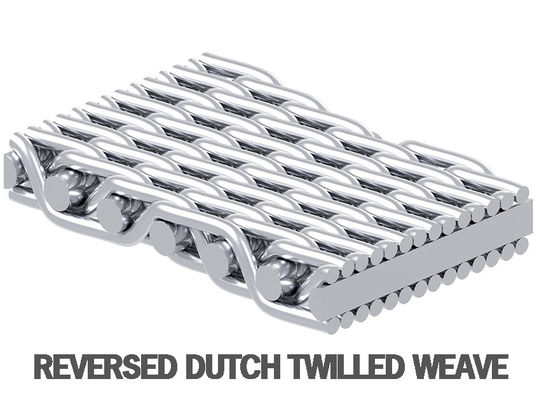

Stainless steel reverse dutch weave wire mesh process is similar weaving process as Plain Dutch weave, except that the warp and weft wires are reversed; The warp wires have a smaller diameter than the weft wires. The larger weft wires are woven closer together than would usually be seen in the Plain Dutch weave. There are two different weaving types of Reverse Dutch Weaves, the Revers Plain Dutch Weave and the Reverse Twill Dutch Weave.

It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage. The reverse dutch weave can also be used in brass wire, which is also has chemical stability for filtering.

Features of Stainless steel reverse dutch weave wire mesh

• Weaving precision.
• Structure compact.
• Acid and alkali resistance.
• High filtration precision.
• Wear-resisting.
• Compression performance is good.

​Applications of Stainless steel reverse dutch weave wire mesh

• Used for water, oil and other liquid precision pressure filter.
• Fuel filter, vacuum filter and is suitable for the aerospace, petroleum, chemical, chemical fiber.
• Used for tire manufacturing, metallurgy, medicine, food and other industries.
• Pressure is not easy to deformation.
• High temperature resistant,do the necessary material sintered mesh.

For filter discs
